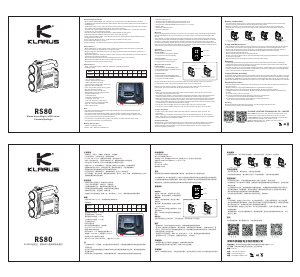

说明书 KlarusRS80闪光灯
需要您的 KlarusRS80闪光灯 手册吗? 您可以在下面免费查看和下载中文版 PDF 手册。 该产品目前有 2 个常见问题,0 条评论,有 0 票。 如果这不是您想要的手册,请联系我们。
您的产品是否出现故障而说明书没能提供解决方案?请前往 Repair Café 以获得免费维修服务。
说明书
Loading…
RS80
Klarus Super Bright, 3450 Lumen,
Portable Spotlight
Power but to n
Caution b ut ton
Twisting t he s crew, and op ening
the batte ry h ousing
Put the bat te ry in Connect t he b attery DC p lug
Closing t he b attery ho using,
tighten in g the screw
Shoulder belt screw assembly diagram
Screw-i n th e shoulde r belt scre ws t o
attachm en t points on t he handle .
Main view
Baldric B p or t
Baldric A por t
• Standard capacity: 6600mAh• Charging voltage: 8.4V
• Charger mode: Constant Potential/ Constant Current
• Charger time: 6600mAh/3000mA (3A charger) +1 hr =3.2hrs
• Weight: 280g
• Dimensions: 60*38*79mm
• Cycle life: 200 times
Warning
Klarus use high quality protection circuits in our Li-ion battery packs. We always suggest using
KLARUS batteries in any of our devices for your safety and to minimize risk of damage to the
device
The 18650 Li-ion battery packs are Industrial rated products. Please follow the directions and
safety instructions that accompany the battery. Improper use may cause the battery to overheat,
explode or cause serious damage to the battery or device it is contained inUse of any Klarus
Product and/or battery implies you have read and understand the risks associated with use and
that you voluntarily assume responsibility of any damage or injury that results from improper use
of the device, power supply or associated accessories
Operation
When the device is OFF
Power button
• Short press for momentary lighting
• Long press for constant lighting
Caution button
• Short press for momentary strobe
• Long press for constant strobe
When the device is ON
Power button
• Short press for INCREASED output
• Fast double-press for STROBE function
• Long press for OFF
Caution button
• Short press for DECREASED output
• Fast double-press for STROBE function
• Long press for SOS function
Strobe and SOS condition: Short press the Power or Caution button to return the device to
normal lighting mode. Long press the Power button to turn the device off
Memory function: When a lighting mode is on for more than 3 seconds, the mode will be
memorized. The device will return to this mode when turned on next
Cautions
• When you first receive the flashlight, please open the battery housing door and connect
the battery DC plug first prior to use
• After replacing the battery, the first time the flashlight is powered on the mode will be at 50%
output. Press the Power or Caution buttons to adjust to the output mode you require
• When using the device at 70% output or higher, the device will automatically switch off when
the battery charge reaches20% of its capacity. To continue using the device with the same
battery, wait 10 minutes and turn it on again. It will then operate at modes 50% output or less
until the battery is completely depleted of its charge
•
• If using the device at 30% output or less, the device will only use 1 of the 3 LEDs
Charger operation
• Please connect the charger cable to the device prior to switching on the power at the
wall/socket
• When charging is complete, switch off the power at the wall/socket prior to removing the
cable. Take care in removing thecharging cable and do not use excessive force or speed as
this may damage the connections or cable
Charging Indicator
While charging, the LED indicator light on the charger turns red. When charging is complete
the light turns green. We suggest charging for 1 hour more when the light turns green to
maximize battery charge levels, but you should ALWAYS disconnect the charger within
24 hours of starting a recharge
• Standard voltage: 7.4V
If using the device at 50% output, the device will only use 2 of the 3 LEDs
Battery replacement
• Turn the battery housing cover screw counter clock-wise until the housing door can be freely
opened. Disconnect the battery DC plug and take out the battery
• Replace the battery, reconnect the plug and re-secure the housing screw to complete the
replacement, ensuring you do not over-tighten the screw as this can damage the screw and
the housing
Warming
Due to the extreme brightness of this device, do not shine the light directly into
eyes as this may cause irreversible damage.
Usage and Maintenance
• The flashlight's surface will increase in temperature during use, especially during periods of higher
lumen output. The maximum safe operating surface temperature of the flashlight is 60℃ /140 F
• Please fully charge battery before initial use. Included battery is charged to less than 50% as a
safety measure and will not power the flashlight at full specification without charging
• Do not shine light directly into eyes
• Remove battery when stored for extended periods
• Please unscrew the light's body to avoid accidentally switching the light ON when not wanted during
an emergency situation
• Replace and lubricate O-Rings as needed to maintain IPX-8 rating
Warranty
• KLARUS guarantees the flashlight against defects in material and workmanship. Flashlight
products that are found to be defective under normal use within 5 years of the proof of purchase
date will be repaired or replaced without charge
• This warranty does not cover damage caused by accident, unreasonable use or product alteration.
Failure to follow the general maintenance directions could result in damage to your flashlight that
may not be covered by the KLARUS warranty
Limited lifetime warranty
If problems develop after 5 years from the date of purchase, KLARUS will charge for parts. The total
repair fee will be assessed according to the cost of the replacement materials. If damage to the light
is substantial, KLARUS will contact the customer via the distributor with a quote. The customer can
then decide whether to proceed with the repairs or not. Freight will be paid by distributor or customer.
Warranty Procedure
• If this flashlight does not perform to the specification, the product will be repaired or replaced as
described above.
• Please contact your original KLARUS dealer for replacement and repairs
• If the warranty issue cannot be resolved by the dealer, please contact KLARUS at
info@klaruslight.com for assistance. Please provide the following information to expedite the
process:
1) List the series number on the light,
2) Include a detailed description identifying the issue, accompanied
by pictures or a short video demonstration if necessary
3) Provide the name and store of the dealer you made the purchase
from; and a copy of the proof of purchase
主要特点
• 紧凑设计 体积小 亮度高 超强远射 方便携带
• 大口径深光杯 三束强大光柱 射程达 米
• 3*CREE XM-L2 (U2) 最高亮3450流明 最长续航18天
• 创新一体式散热设计 可长时间高亮档工作,有效降低高温对LED的损害
• 防水达到水下2米标准 防水DC充电插座,可在暴雨天气使用
• 底部UNC1/4'-20标准螺纹孔 可固定在三脚架上对任何高度,任何角度照明
• 包裹高低差双开关设计 操作舒适方便。黑暗中快速定位,不会误碰误操作
• 更换电池组方便快捷,满足长时间不间断搜寻使用
• 无论开机关机、爆闪瞬间进入。具有瞬亮功能 适合个人紧急使用
• 9个不同输出 带记忆功能 满足各种使用需求 是户外 狩猎,搜索 消防救援等专业人员可
信赖的轻量化高亮远射装备
其他特点
• 精美不锈钢头压圈设计 有效保护光学系统
• 人体工学手柄,防脱手 隔热设计 手感舒适
• 可拆卸肩带螺丝设计 兼顾多种使用需求和习惯
• 采用高品质高效率恒流电路,将电池利用率达到最佳
• 精美手提工具盒 坚固耐用 携带方便
• 亮度低于50%后的档位 每降一档 依次会关1个、2个灯 最低亮度时功耗降至最低
规格
•
•
•
•
•
•
•
•
•
•
•
, , , ,
, ,
, ,
,
,
,
,
,
, , , , ,
,
, ,
,
, ,
, , ,
使用CREE XM-L2 (U2),使用寿命高达50000小时
照明模式
最高亮度3450流明,1.1小时
最低亮度9流明,430小时
爆闪亮度3450流明,2.2小时
SOS亮度3450流明,4.2小时
开机亮度为50%
光杯:光面光杯
镜片:钢化超清玻璃镜片,镀AR膜
尺寸:155.5*52*144.2mm
重量:900克(含电池组)
配件:肩带×1,1/4-20锁匙扣相机螺丝×2,
充电器(8.4V/3A) ×1,O型圈:65*2mm×1
充电器:AC/DC 锂离子充电器
输入:AC 110V-240V 50/60HZ ;输出:DC 8.4V/3A
注
上述参数只是一个近似值,在实验室环境中测试所得。实际数据会随着手电和电池的使用环境
不同而变化
由于本产品有以极亮档连续工作满20分钟时自动切换至高亮档的安全设定,故此极亮档续航时
间为累加时间
仅限使用本公司指定电池组,如使用其他电池组,可能造成电池组过放损坏或其他危险
800
RS80
KLARUS远射王,高亮3450流明充电手提灯
电源开关
警示按键
扭松螺丝,然后打开电池仓
肩带螺丝组装图
A肩带孔
Mode
流明
1 2
3
4
5
6
7 8 9
爆闪
SOS
1956 LM 1197 LM
9 LM
3450LM 3450LM3128LM 2819LM 946 LM 643 LM 289 LM3450LM
电池组说明
18650锂离子电池组
电芯:18650锂离子电池×6
标称电压:7.4V ;标称容量:6600mAh; 充电电压:8.4V; 充电方式:恒流/恒压
充电时间:6600mAh/3000mA+1小时=3.2小时
重量:280g
尺寸:60*38*79MM
循环寿命:200次
警示
使用品质优秀并带有保护电路的锂离子电池组,建议使用KLARUS推荐电池组
18650锂离子(Li-ion)电池组属于工业电芯,并非有安全保障的民用电池,当电池品质不良或者使用
不当(短路,高温等等)时可能发生燃烧、爆炸并危及人身和财产安全,故不要使用品质低劣无保护电
路的电池组。若使用此电池种类应明白其中的风险并自愿承担相应的责任
使用操作
关机状态
主按键:单击点亮,长按开机进入照明
警示按键:单击点亮爆闪,长按锁定爆闪
照明状态
主按键:单击增加亮度,双击进入爆闪,
长按关机
警示按键:单击亮度递减,双击进入爆闪
,长按进入SOS
爆闪、SOS状态下单击主按键点亮,长按
主按键关机
爆闪、SOS状态下单击警示按键返回进入
亮度
档位记忆
在任何照明档位工作超过3秒,记忆当前档位,再开机将进入记忆档位
提示
• 更换电池后,首次开启档位为50%档位,按键增加或递减到期望亮度
• 当70%以上高亮档工作至熄灭时(接近耗完电,实际还有约20%的电量),放置10分钟后,重
新开启,可以以50%以下低亮度档位继续工作一段时间直至彻底耗完电完全不亮(具体时间根
据电池品质及工作档位而定)
• 亮度低于50%后的档位,每降一档,依次会关1个、2个灯,最低亮度时功耗降至最低
• 首次使用本产品,打开电池仓,连接电池DC插头,方可使用
充电操作
• 将充器DC插头与手提灯DC插座接驳,接通电源即开始充电
• 充电完成后拔出充电DC插头即可,避免大力拉扯充电线
充电指示
充电中,充电器指示亮红灯,充电完成后亮绿灯,建议在亮灯后1小时后24小时前拔出充电DC插头
电池更换
当需更换电池时,扭开手提灯后盖螺丝;拔出电池DC插头,取出电池,即可更换
充电注意事项
• 长时间不用手电,请取出电池,以免发生电池漏液
• 长时间存放充电电池,建议每3个月进行一次充放电操作,以延长电池使用寿命
使用及维护
• 手电在使用过程中,手电表面温度在60度以下属于正常情况,请放心使用
• 充电电池出厂时只有50%以下电量,直接使用不能达到最高亮度和正常续航时间,首次使用请
将电池充满
• 为达到最佳防水性能,请定期检查防水O圈的完整性,并请适量涂抹润滑硅脂于防水O圈上以
延长其使用寿命。如O圈损坏,请及时更换原厂O圈以确保您所使用之产品的优异防水性能
• 请勿将手电筒的光线直接照射人类或动物的眼睛
• 长时间不使用手电筒时,请将电池从手电筒中取出,妥善存放
保修
• 15天保换期:自售出之日起15天内,在正常使用情况下,出现产品质量问题,客户可选择更
换新品或修理服务,要求更换时,所换产品应为返修产品同型号同规格的新品;如同型号同规格
的产品停止生产时,则调换不低于原产品性能的同品牌产品
• 5年免费保修期:自售出之日起5年内,用户在正常使用情况下,出现产品质量问题,则享受
免费维修服务
• 终身有限保修:超过5年免费保修时间,提供有偿保修,费用以实际更换材料费用为准,不另
收取人工费用
警示
本产品亮度极高,请勿直视发光体,以免造成视力损伤
B肩带孔
主界面
将肩带上的螺丝放进把手上
的螺丝孔,并拧紧
将电池包放进去
连接电池DC插头
关闭电池仓,拧紧螺丝
Outstanding Advantages
• Super bright LED Spotlight, with a output of up to 3450 lumens and Max runtime of 18 days
• 3 CREE XM-L2(U2) LEDs situated in deep smooth reflectors throws beam to a maximum distance
of 800 meters
• Lightweight, easy to carry, billet aluminum casing rated to IPX-8 Standard (waterproof to a depth
of 2 meters). DC rechargingsocket safe to use in wet conditions
• Innovative one-piece design limits thermal stress on internal electronics, allowingfor extended
periods of use, even atmaximum output
• Tripod mountable via the standard UNC1/4'-20 threaded mounting point
• High/Low output dual switch buttons for quick, one-hand operation
• Easy to replace battery pack - meet the continuous use requirements of Search & Rescueand
Emergency Services work
• Easy to access Strobe function - instant access to strobe from any mode
• Nine modes with memory function
• Ideal for Military, Law Enforcement, Hunting, Search & Rescue and Outdoor activities
Other features
• Smart LED usage - at 50% power mode or lower, the flashlight will shut down non-essential
LED’s to enhance the lightefficiency and power usage
• Elegant stainless steel head pressure ring design protects the lens and reflector system from
drops and impacts
• High quality and highly efficient Constant Current circuits, allows the battery to achieve optimum
performance under anyconditions
• Ergonomic handle and heat insulation design allows for ease of use and carry.
• Detachable shoulder belt with screw-in attachment points
• Packaged in a sturdy case for easy storage
Specifications
Uses x3 Cree XM-L2(U2) LEDs with a lifespan of 50,000 hours each
• Lighting modes:
Max: 3450 lumens (1.1hrs)
Low: 9 lumens (430hrs)
Strobe: 3450 lumens (2.2hrs)
SOS: 3450 lumens (4.2hrs)
50% brightness when light turned on
• Reflector: Smooth reflector
• Lens: Tough ultra-clear tempering glass,
with anti-reflective coating
• Dimensions: 155.5*52*144.2mm
• Weight: 900g (including battery pack)
• Included accessories:
x1 Shoulder belt
x2 Screw-in attachment rings
x1 Charger (8.4V/3A)
x1 O-ring replacement (65*2mm)
• Charger: AC/DC LI-ION CHARGER
• Input: AC 110V-240V 50/60HZ
• Output: DC 8.4V/3A
Note
• The above-mentioned parameters are approximate and may vary between flashlights,
batteries and environments
• The flashlight will automatically switch from 100% output to 90% output mode after 20
minutes of continuous use to maximize battery run time. The above 100% output run time
figure is therefore based off accumulative time
• Use the Klarus supplied battery only. Use of after-market batteries may cause
damage to the battery or the flashlight
Battery Specification
• 18650 Li-Ion Battery pack
• Battery cells: 18650 Li-ion Battery×6
•
Mode
Lumens
1 2
3
4
5
6
7 8 9
Strobe
SOS
3450LM 1956 LM 1197 LM
9 LM
3450LM 3450LM3128LM 2819LM 946 LM 643 LM 289 LM
关注微信
进入官网
淘宝购买京东购买
KLARUS LIGHTING TECHNOLOGY CO., LIMITED
Website Facebook
Office Address: Room 521-525, Zhihuigu Innovation Park, 1010
Bulong Road, Longhua District, Shenzhen City, 518131,China
Factory Address: 5/F, No.26 Building, Niulanqian Industrial Park,
Longhua District, Shenzhen City, 518131, China
Email:info@klaruslight.com Phone:+86-755-27700110
Website: www.klaruslight.com
深圳市凯瑞兹电子科技有限公司
工厂地址:深圳市龙华新区民治牛栏前工业区26栋5楼
邮编:518131
电话:+86-755-27700110
网站:www.klaruslight.cn
:
写字楼地址:深圳市龙华新区布龙路1010号智慧谷创新园大楼521-525
邮箱 info@klaruslight.com
Loading…
常见问题
请给产品评分,告知您对KlarusRS80闪光灯看法。您是否希望分享对该产品的体验或提出问题?请在页面底部留言。有关本说明书的更多信息
我们知道,为您的 KlarusRS80闪光灯 提供纸质手册是件好事。 您随时可以从我们的网站下载该手册并自行打印。 如果您想要原始手册,我们建议您联系Klarus。 他们也许能够提供原始手册。 您是否正在寻找其他语言版本的 KlarusRS80闪光灯 手册? 在我们的主页上选择您的首选语言并搜索型号以查看我们是否有可用。
规格
品牌 | Klarus |
模型 | RS80 |
类别 | 闪光灯 |
文件类型 | |
文件大小 | 0.89 MB |
关于 KlarusRS80闪光灯 的常见问题
我们的支持团队将搜索有用的产品信息并回答常见问题。如果您在常见问题中发现不准确的回答,请使用联系表格告知我们。
设备中的电池被氧化了,我仍可以安全使用吗? 验证
Ja,该设备仍然可以安全使用。首先,取出氧化电池。切勿徒手操作。然后用蘸有醋或柠檬汁的棉签清洁电池盒。晾干并插入新电池。
有帮助 (102) 阅读更多
加入有关该产品的对话
您可以在这里分享您对 KlarusRS80闪光灯 的看法。 如果您有疑问,请先仔细阅读手册。 可以使用我们的联系表索取手册。
